Complete Tooling Solutions for Injection Molding

A well-designed mold is the foundation of consistent, high-quality injection molded parts. At Texlon Plastics, our full-service Tool & Die Department provides the expertise and capabilities required to design, build, maintain, and optimize molds for efficient production.

By handling tooling operations in-house, we are able to maintain complete control over mold quality, performance, and turnaround times. This integrated approach allows us to support projects from initial product development through full-scale production, ensuring that every mold is engineered for durability, precision, and long-term reliability.

Our experienced tooling specialists work closely with our molding and engineering teams to create molds that maximize productivity, minimize downtime, and deliver consistent part quality.

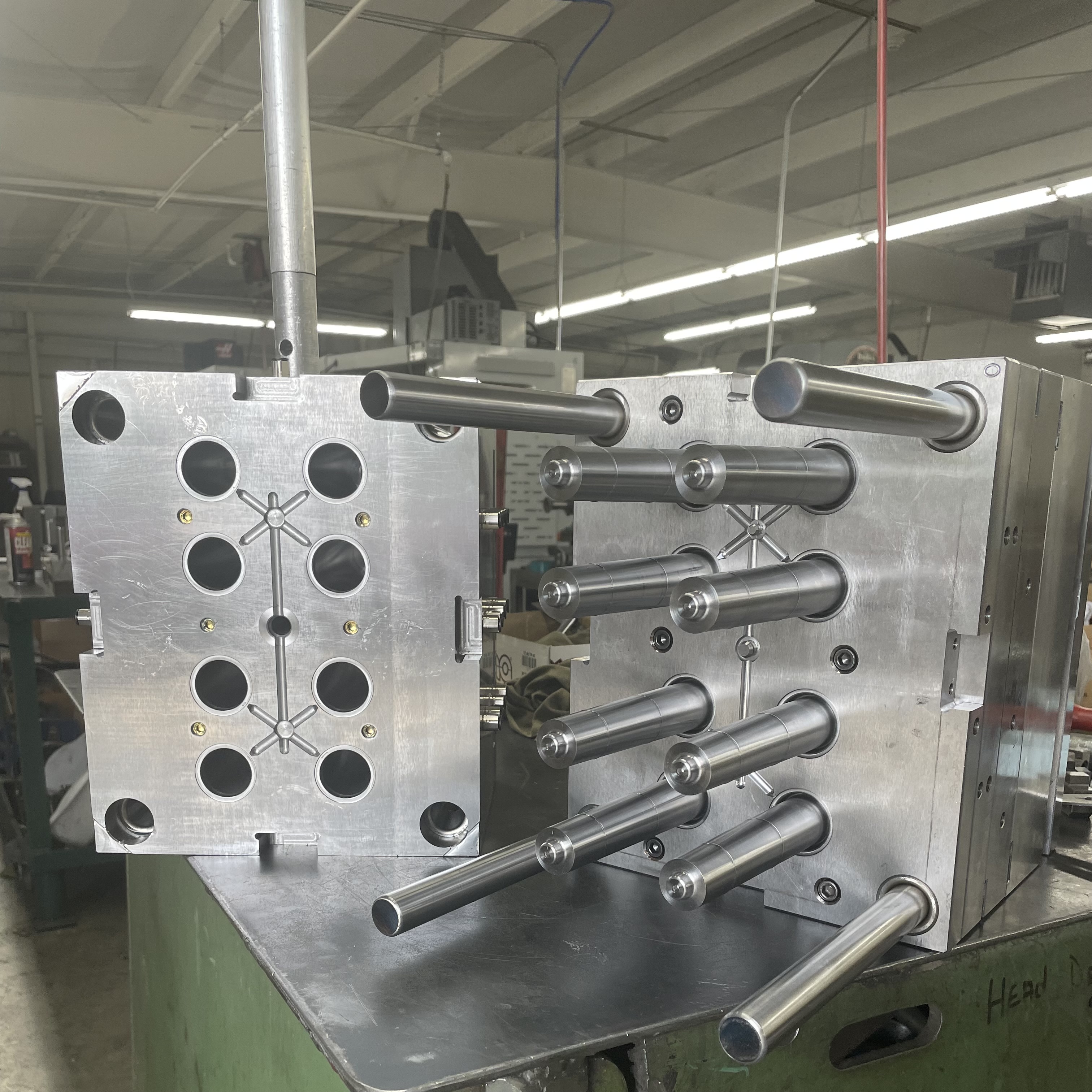

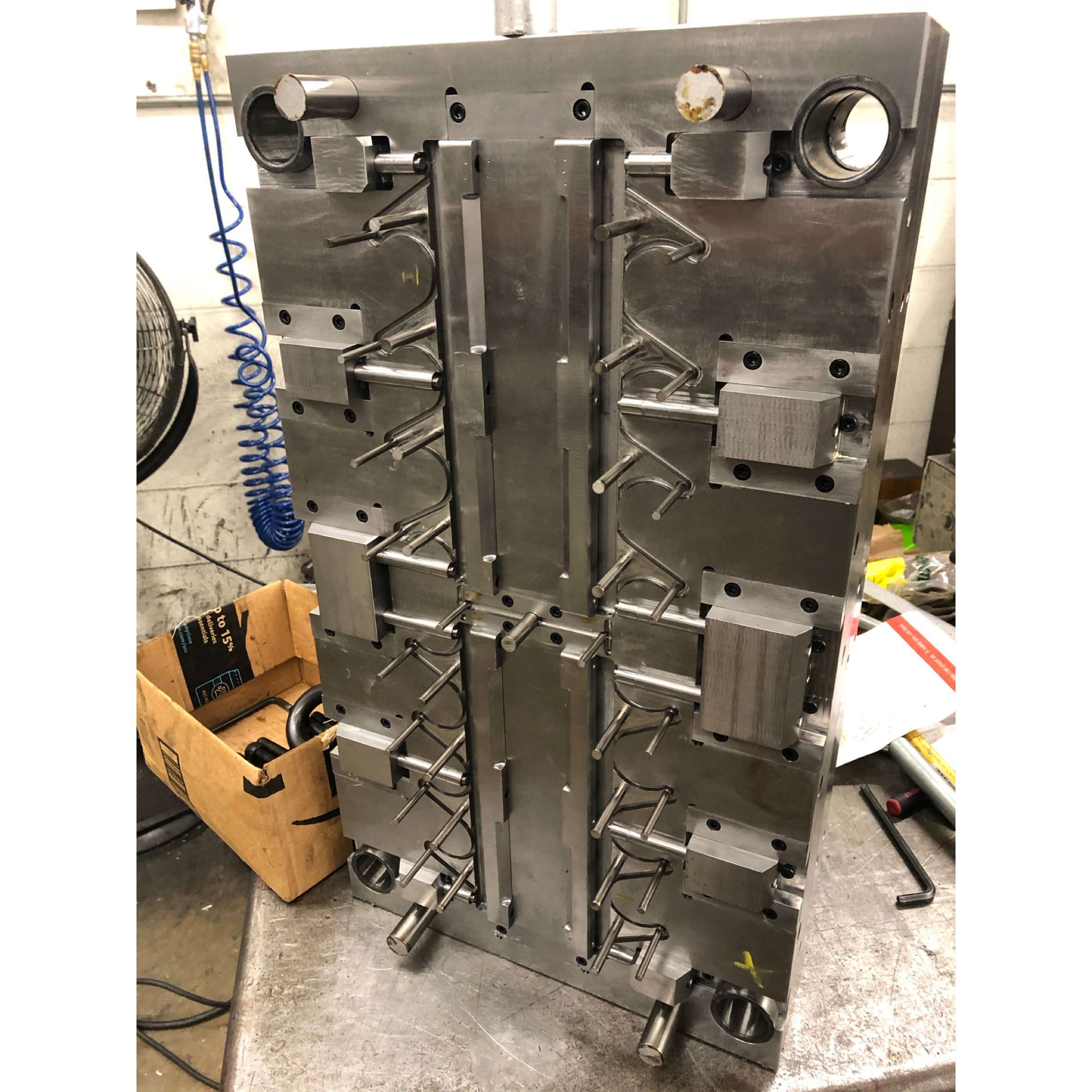

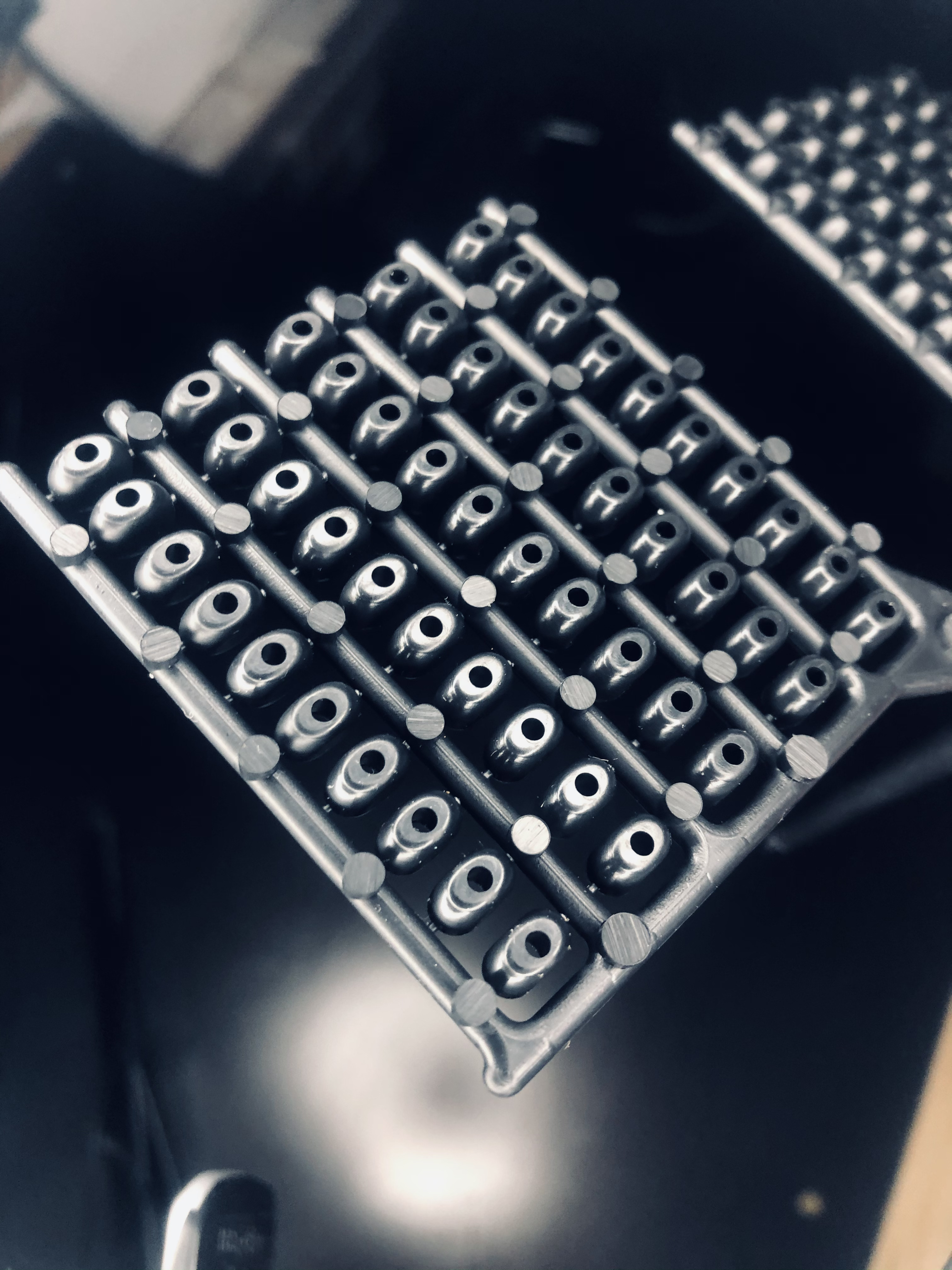

High Production Multi-Cavity Injection Molds

For high-volume production, multi-cavity injection molds offer a highly efficient manufacturing solution. These molds produce multiple parts in a single molding cycle, significantly increasing output while reducing overall production costs.

Our Tool & Die Department designs and manufactures high-production multi-cavity molds engineered for reliability, precision, and long production runs.

Multi-cavity molds provide several advantages, including:

• Increased production efficiency

• Lower cost per part

• Consistent part quality across multiple cavities

• Faster production cycles for large orders

Our team carefully engineers each cavity to ensure uniform filling, balanced flow, and consistent cooling so that every part produced meets the required dimensional and performance standards.

Single Cavity Injection Molds

While multi-cavity molds are ideal for large production volumes, many applications require single cavity molds designed for specialized parts or lower production quantities.

Single cavity molds are commonly used for:

• Complex or highly detailed components

• Large parts that require significant mold space

• Specialty applications with unique design requirements

• Initial production runs or niche product lines

Our tooling specialists design single cavity molds that deliver exceptional precision and repeatability, ensuring that each molded part maintains consistent quality throughout production.

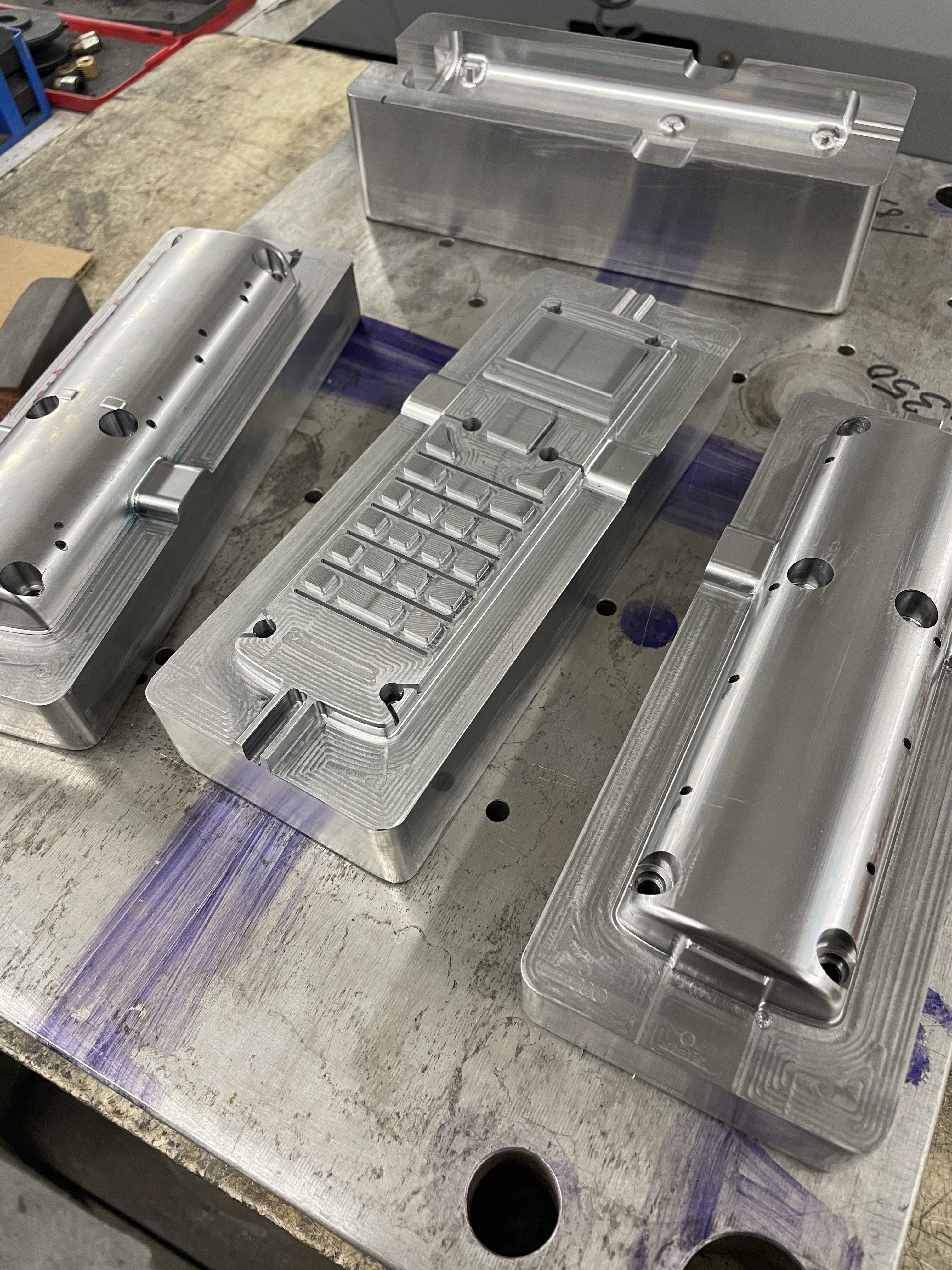

Aluminum Prototype Injection Molds

Before committing to full production tooling, many projects benefit from prototype molds that allow engineers to validate part design and manufacturing processes. Our aluminum prototype injection molds provide a cost-effective way to evaluate new products while accelerating development timelines.

Aluminum molds offer several advantages for prototyping and early production, including:

• Faster mold manufacturing

• Lower tooling costs compared to hardened steel molds

• Shorter lead times for product testing

• Quick design adjustments if changes are required

These prototype molds allow customers to test part functionality, confirm dimensions, and refine designs before investing in long-term production tooling.

3D Printing, Prototyping & Small Batch Production

Product development often requires rapid iteration and testing before full-scale manufacturing begins. Texlon Plastics supports this process with 3D printing, rapid prototyping, and small batch production capabilities.

3D printing allows engineers to quickly create physical prototypes directly from CAD models. These prototypes can be used to evaluate form, fit, and function before tooling is produced.

Rapid prototyping services support:

• Early-stage product development

• Design validation and testing

• Engineering evaluations

• Small-run product trials

For projects that require limited production quantities, our small batch molding capabilities allow customers to produce functional parts without committing to high-volume tooling.

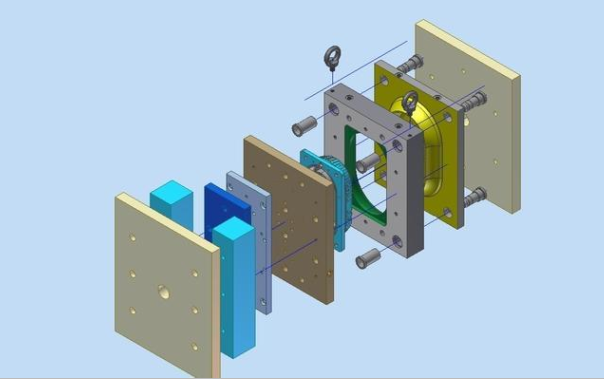

Product Design & CAD Assistance

Successful injection molding begins with effective product design. Our engineering team provides product design and CAD assistance to help customers develop parts that are optimized for both performance and manufacturability.

Working closely with customers during the design phase allows us to identify opportunities to improve part design while reducing production complexity.

Our design support services include:

• Design for manufacturability (DFM) analysis

• CAD modeling and design refinement

• Material selection guidance

• Mold design optimization

• Prototype development support

By collaborating early in the development process, we help customers avoid costly design revisions while ensuring that molds and parts are engineered for efficient production.

Integrated Tooling & Manufacturing Expertise

One of the greatest advantages of our Tool & Die Department is the close integration between tooling, engineering, and production teams. This collaboration allows us to quickly address potential issues, optimize mold performance, and maintain consistent part quality.

Because tooling is developed and maintained in-house, we can:

• Quickly respond to engineering changes

• Perform mold maintenance and repairs efficiently

• Improve mold performance over time

• Reduce production downtime

This integrated workflow ensures that molds remain in optimal condition and continue to produce high-quality parts throughout their lifecycle.

Supporting Product Development from Concept to Production

Our Tool & Die Department plays a critical role in supporting customers through every stage of product development. From early prototypes and CAD design to high-production tooling, we provide the technical expertise required to transform ideas into reliable manufactured products.

By combining precision tooling, advanced engineering support, and modern prototyping technologies, Texlon Plastics delivers tooling solutions that support both innovation and efficient production.

A Complete Tooling Partner

With extensive experience in mold design, prototype tooling, and production molds, Texlon Plastics provides a comprehensive range of Tool & Die services to support injection molding projects of all sizes.

From multi-cavity production molds and aluminum prototypes to 3D printing, CAD design assistance, and small batch runs, our Tool & Die Department ensures that every mold is engineered for performance, reliability, and long-term manufacturing success.
